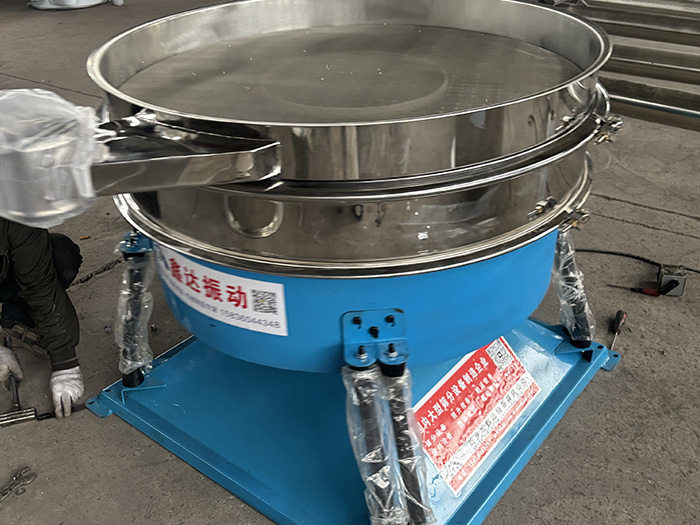

Product Introduction

Based on the principle of artificial oscillation screening, the screening accuracy, output, and service life are all 5 to 10 times higher than those of conventional circular screens. The screening accuracy can reach 90-95%, and the screening output is 5 to 10 times that of ordinary vibrating screens. It is suitable for fine powders, spherical, sheet-like, and irregular-shaped materials that are prone to clogging. The circular oscillating screen comes in two materials: carbon steel and stainless steel. It can be reasonably selected based on the material. The models of the circular oscillating screen are complete, and they are directly supplied by the manufacturer at a low price.

Product features

√ Effectively imitate the manual screening action and process, with a screening accuracy of up to 90-95%.

√ Made of 304 stainless steel, it is more durable and has a longer service life;

√ Multiple cleaning devices can be added (such as bouncing ball for cleaning the screen surface, ultrasonic technology for cleaning the screen surface, etc.), which can effectively solve the problem of screen surface blockage, ensure the continuity of screening, and the fully enclosed structure can reduce environmental pollution;

√ Ultra-sealed structure, reducing environmental pollution, with noise levels as low as 75 dBa;

√ The ball bouncing cleaning method, ultrasonic cleaning method, and brush cleaning method offer multiple cleaning options, ensuring that the screen mesh does not get clogged or deformed, and improving the screening efficiency.

√ It can be designed for free according to the user's requirements.

Application industry

Stainless steel oscillating screen * Made of 304 stainless steel material, the screen machine has a smooth and beautiful appearance without burrs. It is a multi-purpose new type of screening machinery designed to meet the requirements of high output and high precision screening. It fully simulates the principle of manual screening, with a screening accuracy of over 95%. The processing capacity is 3-5 times that of ordinary screening machines, and the service life of the screen mesh is 5-10 times that of conventional screening equipment. It is suitable for the screening of fine and ultra-fine powder and particle materials, and is suitable for screening processes with difficult handling and high output.

Application scope: Food industry, pharmaceutical industry, chemical industry, etc.

Application materials: Citric acid, milk powder, starch, sugar, vitamins, spices, tea, feed, plastic, rubber, fertilizers, sugar-salt industry, recycled resources, EPS, PVI, PVC, resin, etc.

Mesh reference

Grain-based granules:

Oat kernels 14 pieces, Mulberry seeds 16 pieces, Corn flour 16 pieces, Rice 12-14 pieces, Soybeans 5 pieces, Red beans 5 pieces, Yellow beans 6 pieces, Coix seeds 8 pieces, Green beans 10 pieces, Kamut 12 pieces, Black rice 14 pieces, Brown rice 14 pieces, Sesame 24 pieces, Millet 24 pieces.

Powder type:

Chinese herbal powder - generally 60 mesh, a bit coarser 40 mesh. Oral use: 60 - 80 mesh. Fine Chinese facial mask: 100 - 120 mesh. Fried chicken coating powder: 10 - 30 mesh. Corn flour: 30 mesh. Almond flour: 30 - 40 mesh. Flour: 50 - 60 mesh. Intestine powder: 60 mesh. Mixed grains: 30 - 40 mesh. Notoginseng powder: 80 - 100 mesh. Pearl powder: 120 - 150 mesh. Pine pollen: 80 - 120 mesh. Coffee powder: 100 - 120 mesh.

Liquid category:

Filter the soy milk and honey through a 60-120 mesh filter to remove the medicinal residue, soup residue and tea water. Use a 80-150 mesh filter for this purpose.

Other Categories:

Pepper 6 mesh insect droppings sieve 30 mesh cat litter 30-40 mesh butterfly flakes 50 mesh chili seeds 8-10 mesh sand painting 80-120 mesh edible oil, mechanical oil residue 150-200 mesh yellow mealworm egg-laying sieve 12 mesh

Applicable scenarios

The vibrating screen is widely used in industries such as chemical engineering, medicine, food and spices, tea, feed, plastics, rubber, fertilizers, sugar and salt industries, recycled resources, EPS, PVI, PVC, resins, etc. for the separation and processing of fine materials.

Based on your material name, hourly production volume, required mesh size, and material density, the model can be selected. Please contact us as soon as possible! If this is your first purchase, please contact us. We will provide you with free consulting services to help you choose the appropriate product.
